Can't ungroup 2 objects

LightBurn Software Questions OS Specific
1

I have a p90 guitar pickup templet that I am preparing for a cut. If you select any blue layered circle/sphere, you will find a line attached to it. I can’t ungroup or separate the two. I dropped this in LB as a .dxf file to start working. Am I missing something basic here?
P90 Draft 3.lbrn2 (18.5 KB)

2

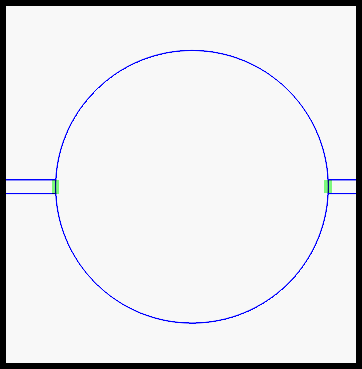

Do you want to trim out the area in green?

image362×369 3.54 KB

3

Yes. I didn’t see those. I guess the laser would have to go there twice and do something.

4

image648×280 10.5 KB

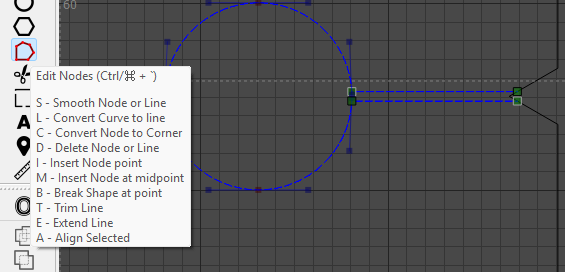

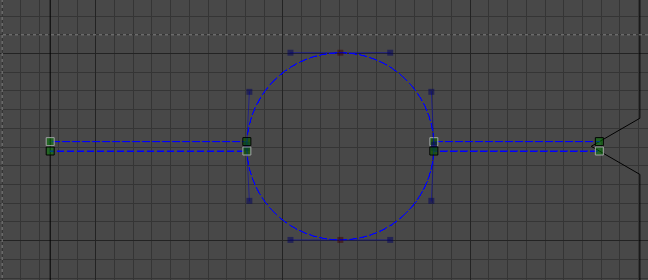

The lines and the circles_almost- shape are on one object. To separate them, you need to NODE EDIT.

image565×272 15.5 KB

5

Got it. I didn’t go that deep yet. I was just moving the sphere again and only one line is attached. Is that what certain files do upon import?

6

Use the scissors tool to trim out the areas in greeen

1 Like
7

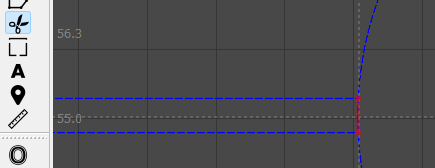

You can use CUT SHAPE (scissor tool), at least on the parts I tried.

image435×168 6 KB

8

You would have to post the DXF file, but it looks like the DXF was not created with a circle entity, and that is why LB joined the line.

9

Cut shapes is a different tool: Cut Shapes - LightBurn Documentation

You mean “Trim Shapes”: Trim Shapes - LightBurn Documentation

1 Like
