Frustrated: Pattern Creation Cut-outs

LightBurn Software Questions
1

I designed some pistol grips (see attached jpeg) which made use of a cross-hatch pattern with my 80W CO2 red-and-black (OMTECH?) laser.

I want to make some refinements, but for the life of me, I can’t duplicate my former efforts, creating a cross-hatch pattern and then cutting a shape from it.

I’m probably overlooking something obvious – and no doubt I will learn about Lightburn capabilities and techniques from observations which respondents make.

I have included:

  • a picture of a laser-cut sample
  • some screen shots of patterns
  • a LBRN2 file to examine (and play with)

Grip Sample
Grip Sample1920×3410 634 KB

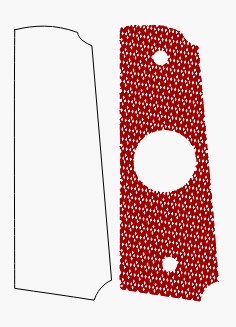

Haatch Cut - 03
Haatch Cut - 03236×327 23.2 KB

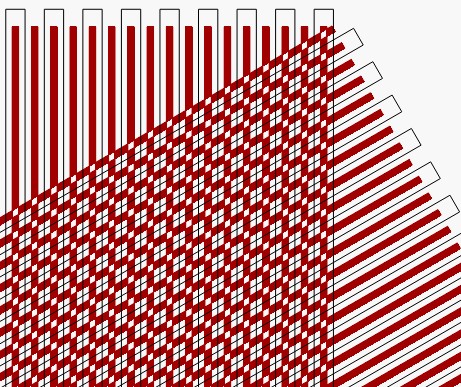

Hatch - 01
Hatch - 01582×431 145 KB

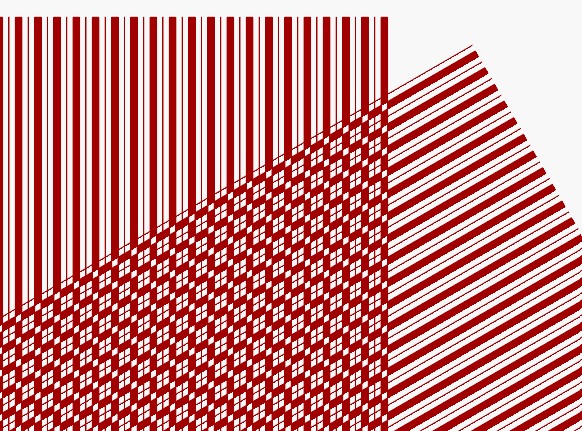

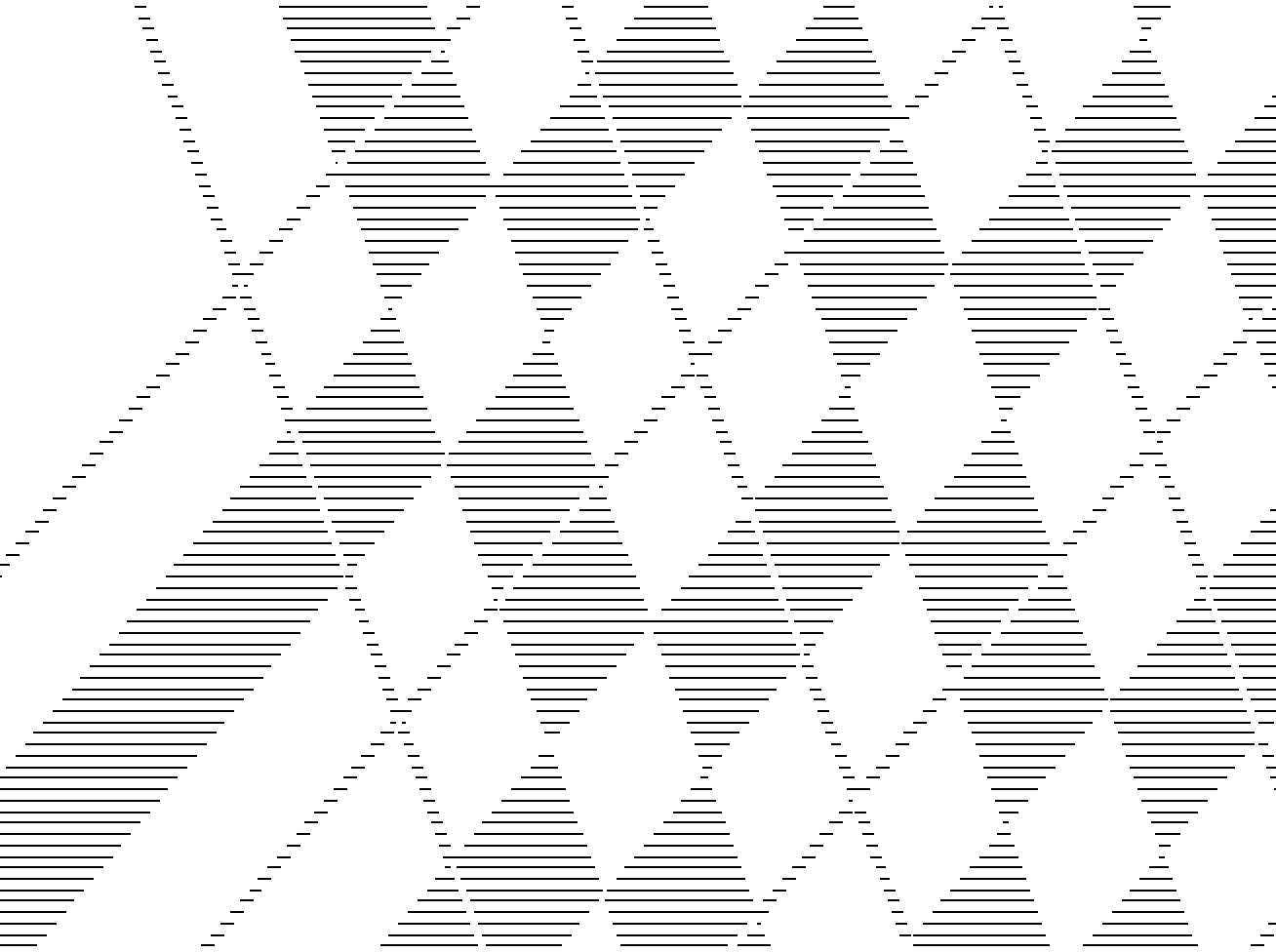

Hatch - 02
Hatch - 02461×387 113 KB

Hatch Patterns and Cut Outs.lbrn2 (1.9 MB)

2

Nice pattern work!

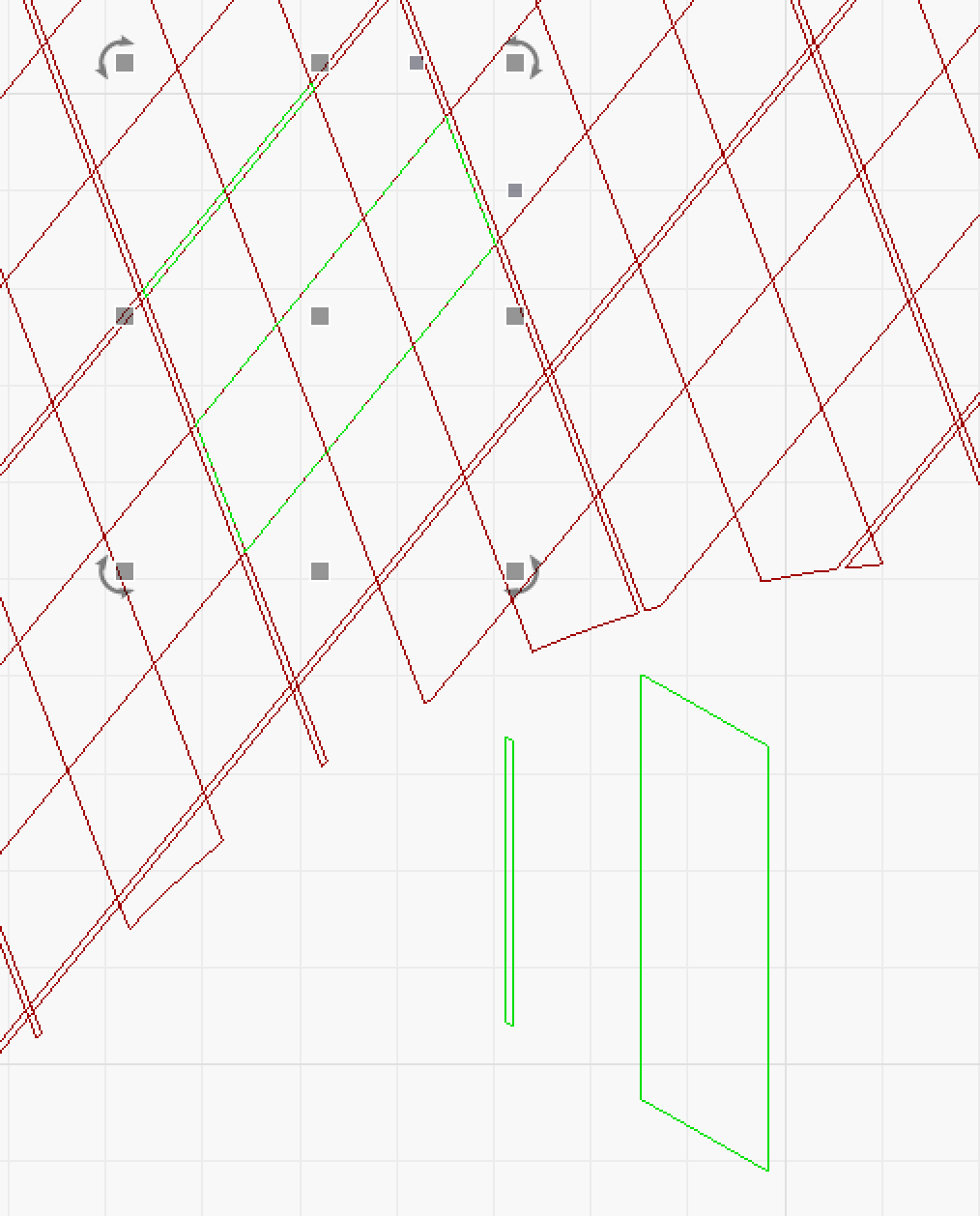

I’ve copied a small section of the pattern I think you were after, and straightened it to use as a template for a new array as attached.

image1014×1258 14.9 KB

image1308×976 2.29 KB

Hatch.lbrn2 (81.5 KB)
