Home made rotary

LightBurn Software Questions Tips and Tricks
1

I have a Preneex 60w Blue China Laser with a Ruida controller.

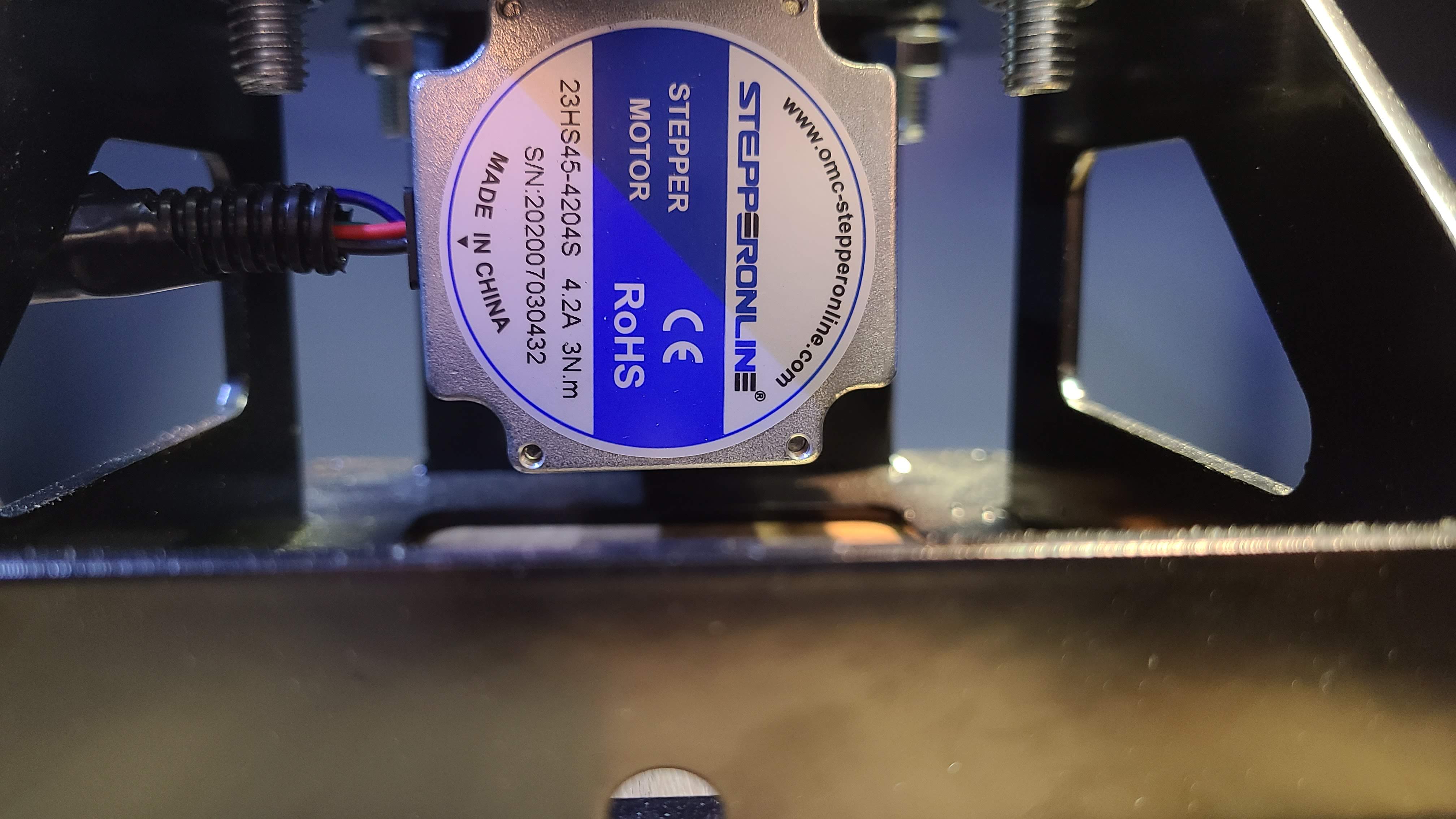

I made my own homemade chuck style rotary. I bought this motor from Amazon to run the rotary High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router. Also have cogged belts and pulley. Used a roll pin thru the pulley instead of set screws. I did alot of test burns to get the correct Pulses per rotation. I burned 1 in squares till it was 1 x 1 on the radius of the cardboard tube.

I not sure what setting I need to change to fix this problem. I can’t get it to do a nice clean burn. It looks like it skips a line. My other Rotary setups work just fine. I am wondering if my chuck is just to heavy and may need to fill it full of holes to lighten it up.

20201110_194409
20201110_1944094032×2268 534 KB

20201110_194817
20201110_1948174032×2268 735 KB
20201110_194826
20201110_1948264032×2268 576 KB
2020-11-10 19 LightBurn 0.9.17
setting 1 LightBurn 0.9.17
setting 1 LightBurn 0.9.17509×913 29 KB

2

you fitted the pulleys incorrectly, the small one belongs on the motor, the big one on the shaft.
so your translation is way too high, you need a small one.

3

Thank you Andres That was the problem. I am off to the races now.
